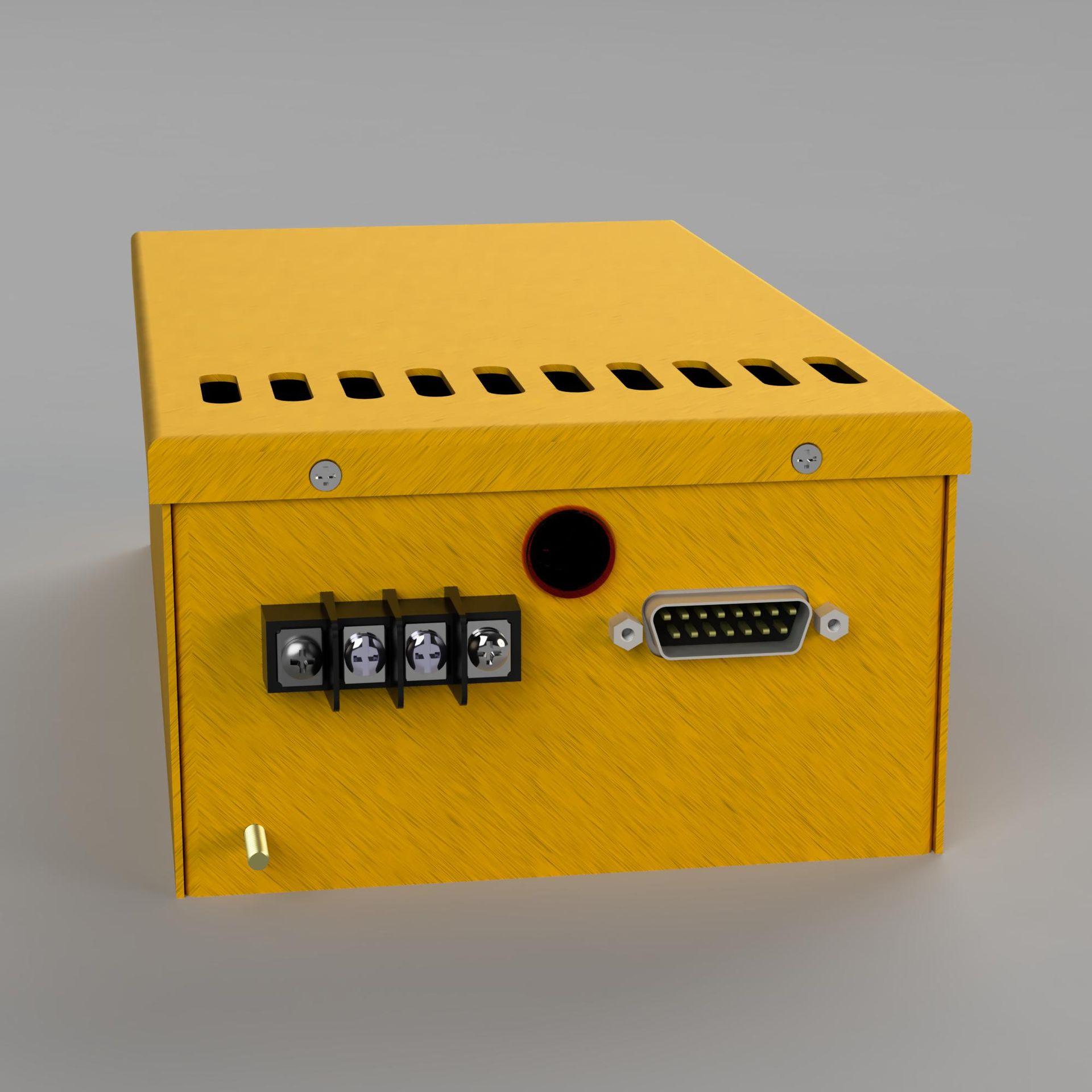

XR Series
Regulated Dc/Dc High Voltage Power Supplies
Compact, highly stabilized 28 VDC-input supplies with independent constant-voltage and constant-current control. Ground-referenced programming, monitoring, and interlock simplify system integration, while the vacuum-encapsulated high voltage section provides corona-free, long-term reliability.
1-60 kVOutput range
60 WRated power
28 VDCNominal input
15-pinControl interface
Key capabilities
- Voltage and current programmable
- Constant-voltage / constant-current operation
- Voltage and current monitoring
- External high voltage interlock
- Arc-over and short-circuit protection
Typical applications
- X-ray systems
- CRT displays and projection systems
- Photomultiplier bias
- Capacitor charging
- Laser systems
Standard model guide
| Model | Output voltage | Output current |
|---|---|---|
| XR60-1 | 0-1 kV | 0-60 mA |
| XR60-1.5 | 0-1.5 kV | 0-40 mA |
| XR60-3 | 0-3 kV | 0-20 mA |
| XR60-10 | 0-10 kV | 0-6 mA |
| XR60-15 | 0-15 kV | 0-4 mA |
| XR60-20 | 0-20 kV | 0-3 mA |
| XR60-30 | 0-30 kV | 0-2 mA |
| XR60-40 | 0-40 kV | 0-1.5 mA |
| XR60-50 | 0-50 kV | 0-1.2 mA |
| XR60-60 | 0-60 kV | 0-1 mA |
Select the model for the required output voltage. Add P or N for polarity, and add /24 when the 24 VDC input option is required.
Specifications
Electrical characteristics
Input+28 VDC ±10%
Alternate input+24 VDC ±10% version available; add /24 suffix
OutputTen models from 1 to 60 kV, fixed positive or negative polarity
Voltage regulationLoad: 0.01% of output voltage, no load to full load; line: ±0.01% for ±10% input change
Current regulationLoad: 0.1% of output current from 0 to rated voltage; line: 0.05% of rated current over the specified input range
Ripple0.1% peak-to-peak of output voltage
Temp. coefficient0.01% per °C in voltage or current regulation
Stability0.02% per 8 hours
Mechanical and interface
Nominal enclosure5 H x 9 L x 3 W in (12.7 x 23 x 7.6 cm); see drawing for exact dimensions
Control interface15-pin D-subminiature
Power inputTerminal block
HV outputRe-entrant bushing with mating output cable; customer-specified connectors available
ConstructionVacuum-encapsulated silicone high voltage section
PolarityFixed positive or negative
Configuration and options
Integration
- Pin 1: current program
- Pin 2: voltage program
- Pin 4: current monitor
- Pin 7: voltage monitor
- Pin 6: external interlock
- Pin 10: +10 V reference
- Pins 5, 11, and 12: signal common
- Pins 13 and 14: chassis ground
Available options
- Positive or negative polarity
- 24 VDC input option: add /24 suffix
- Customer-specified high voltage connector
- Application-specific cable and interface options
- RoHS-compliant version available
How to order
FormatXR60-[Voltage][Polarity][/24]
ExampleXR60-10P/2410 kV | Positive | 60 W | 24 VDC input
CodesP = positive N = negative /24 = 24 VDC input

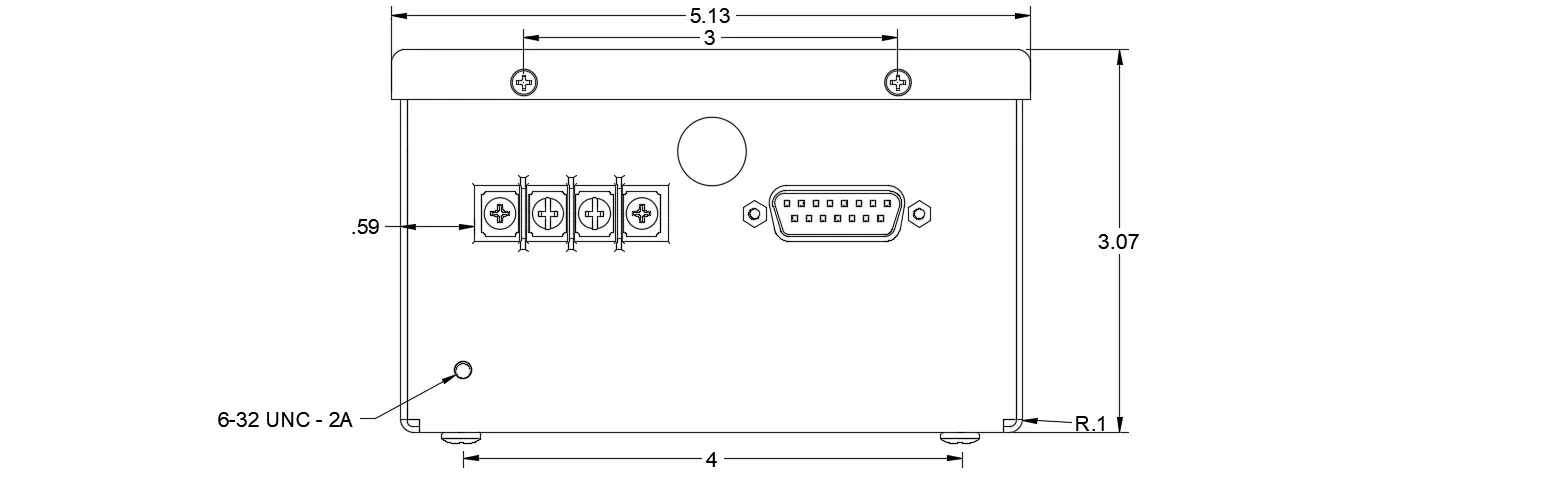

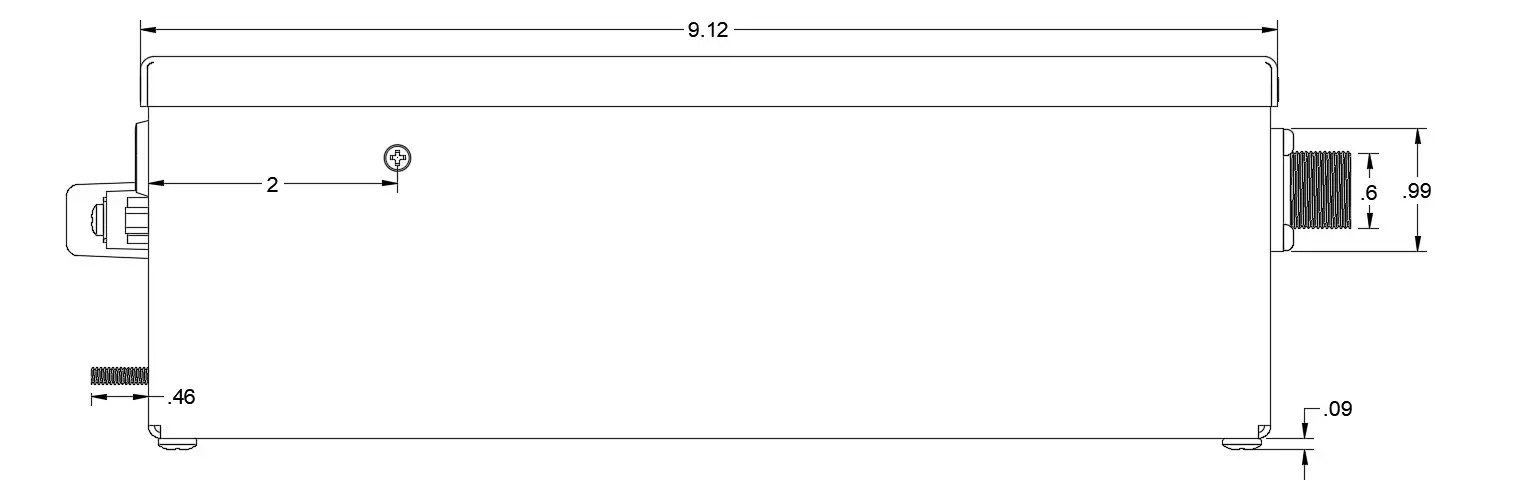

Mechanical drawings
Dimensions are in inches unless otherwise noted. Contact Gamma to confirm the final enclosure and connector arrangement for your configuration.
XR Series resources
Download the data sheet or contact Gamma for configuration assistance.
