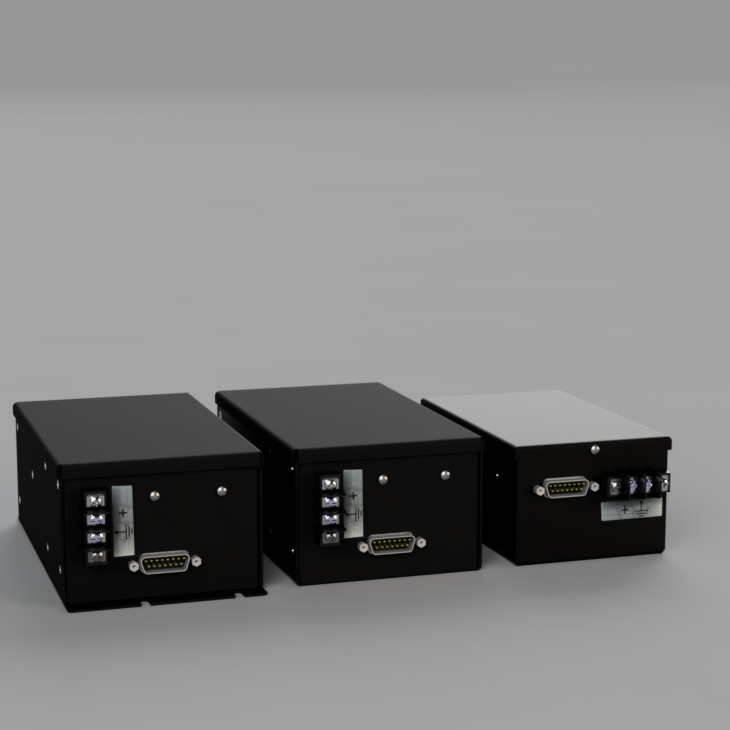

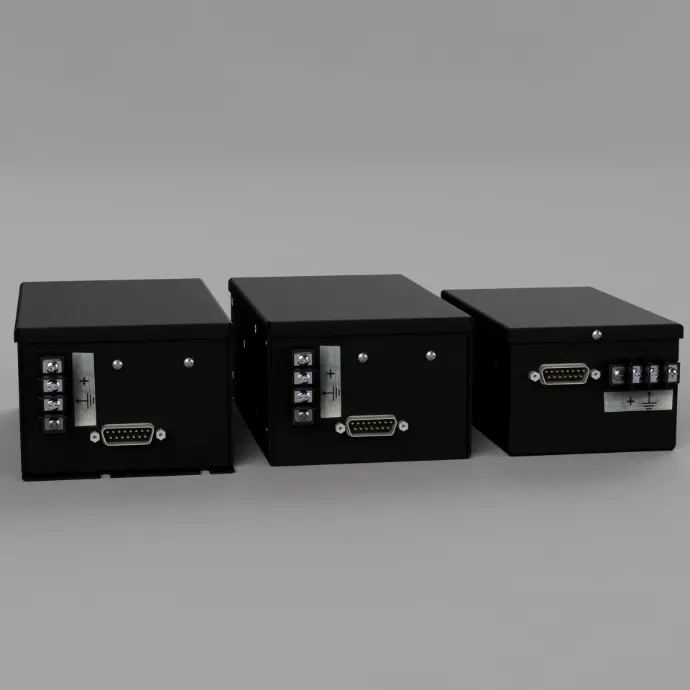

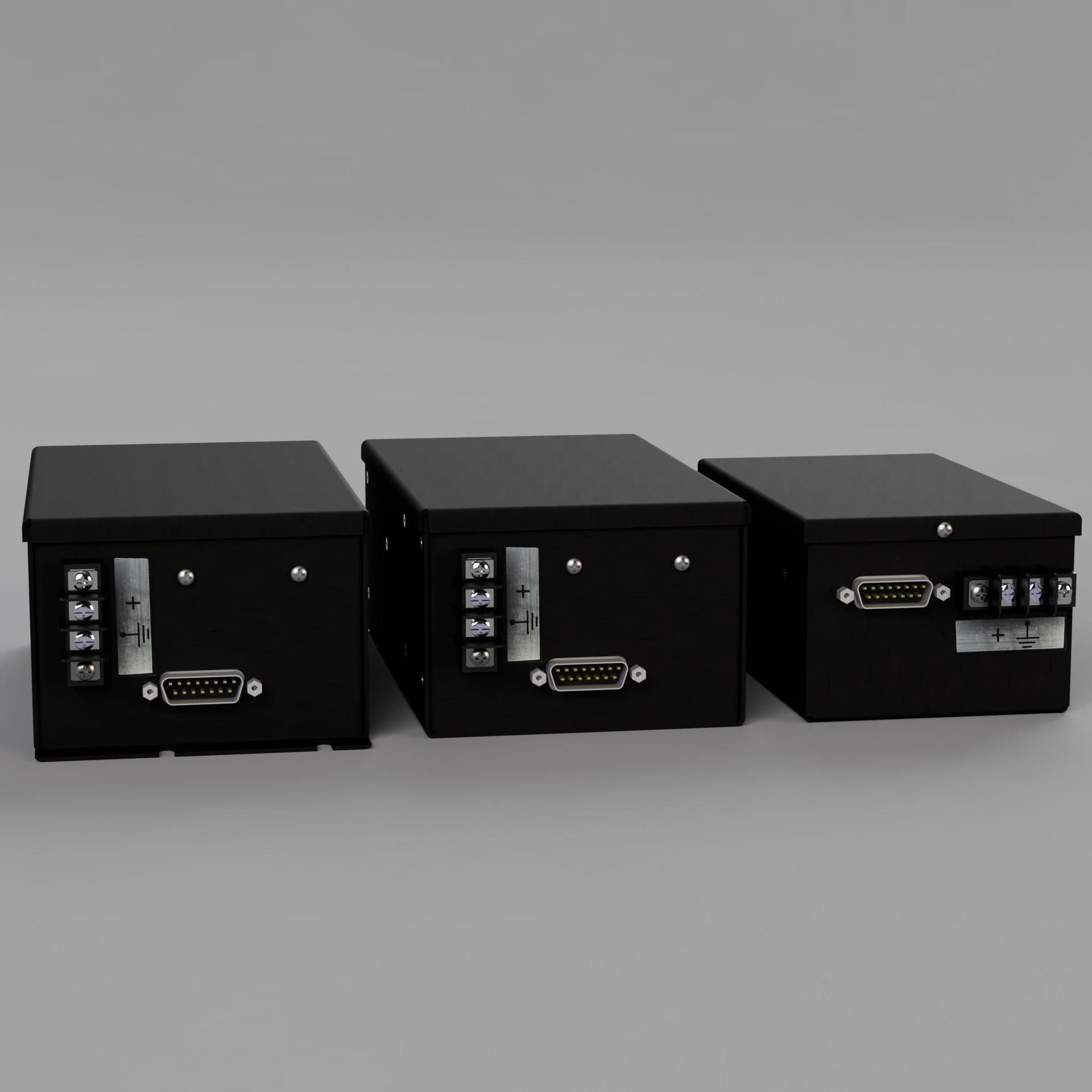

LXR Series
Regulated Dc/Dc High Voltage Power Supplies
Compact, highly stabilized 28 VDC-input supplies delivering up to 30 W from 1 to 50 kV. Independent ground-referenced voltage and current loops, monitoring, and interlock simplify integration. A vacuum-encapsulated silicone high voltage section supports corona-free, long-term reliability.
1-50 kVOutput range
30 WRated power
28 VDCNominal input
CV / CCRegulation modes
Key capabilities
- Voltage and current programmable
- Automatic constant-voltage / constant-current operation
- Voltage and current monitoring
- External interlock capability
- Arc-over and short-circuit protection
Typical applications
- X-ray systems
- CRT displays and projection systems
- Photomultiplier bias
- Capacitor charging
- Laser systems
Standard model guide
| Model | Output voltage | Output current |
|---|---|---|
| LXR 30-1 | 0-1 kV | 0-30 mA |
| LXR 30-1.5 | 0-1.5 kV | 0-20 mA |
| LXR 30-2 | 0-2 kV | 0-15 mA |
| LXR 30-3 | 0-3 kV | 0-10 mA |
| LXR 30-5 | 0-5 kV | 0-6 mA |
| LXR 30-10 | 0-10 kV | 0-3 mA |
| LXR 30-20 | 0-20 kV | 0-1.5 mA |
| LXR 30-30 | 0-30 kV | 0-1 mA |
| LXR 30-40 | 0-40 kV | 0-750 µA |
| LXR 30-50 | 0-50 kV | 0-600 µA |
Choose the model for the required output voltage. Add P or N for polarity, and add /24 when the 24 VDC input option is required.
Specifications
Electrical characteristics
Input+28 VDC ±10%
Alternate input+24 VDC version available
OutputTen models, 1-50 kV, positive or negative
Voltage regulationLoad: 0.05% of output voltage, no load to full load; line: ±0.01% for ±10% input change
Current regulationLoad: 0.05% of output current from 0 to rated voltage; line: 0.05% of rated current over the specified input range
Ripple0.5% peak-to-peak of output voltage
Temp. coefficient0.01% per °C in voltage or current regulation
Stability0.02% per 8 hours
Mechanical and interface
Nominal dimensionsThrough 40 kV: 3.75 x 6.0 x 2.75 in; 50 kV: 4.375 x 7.5 x 3.0 in excluding flange, or 4.375 x 8.5 x 3.0 in including flange. See drawings for exact case and connector projections.
Control interface15-pin D-subminiature
Power inputTerminal block
HV outputFlying wire; customer-specified connectors available
Operating temp.0 to 50 °C
Storage temp.0 to 70 °C
ConstructionVacuum-encapsulated silicone high voltage section
Configuration and options
Integration
- Ground-referenced voltage and current programming
- Output-voltage and output-current monitoring
- External interlock capability
- Independent voltage and current control loops
- 15-pin control interface and separate terminal-block power input
Available options
- Positive or negative output polarity
- 24 VDC input: add /24 suffix
- Customer-specified high voltage output connector
- RoHS-compliant version available
How to order
FormatLXR 30-[Voltage][Polarity][/24]
ExampleLXR 30-10P/2410 kV | Positive | 30 W
CodesP = positive N = negative /24 = 24 VDC input

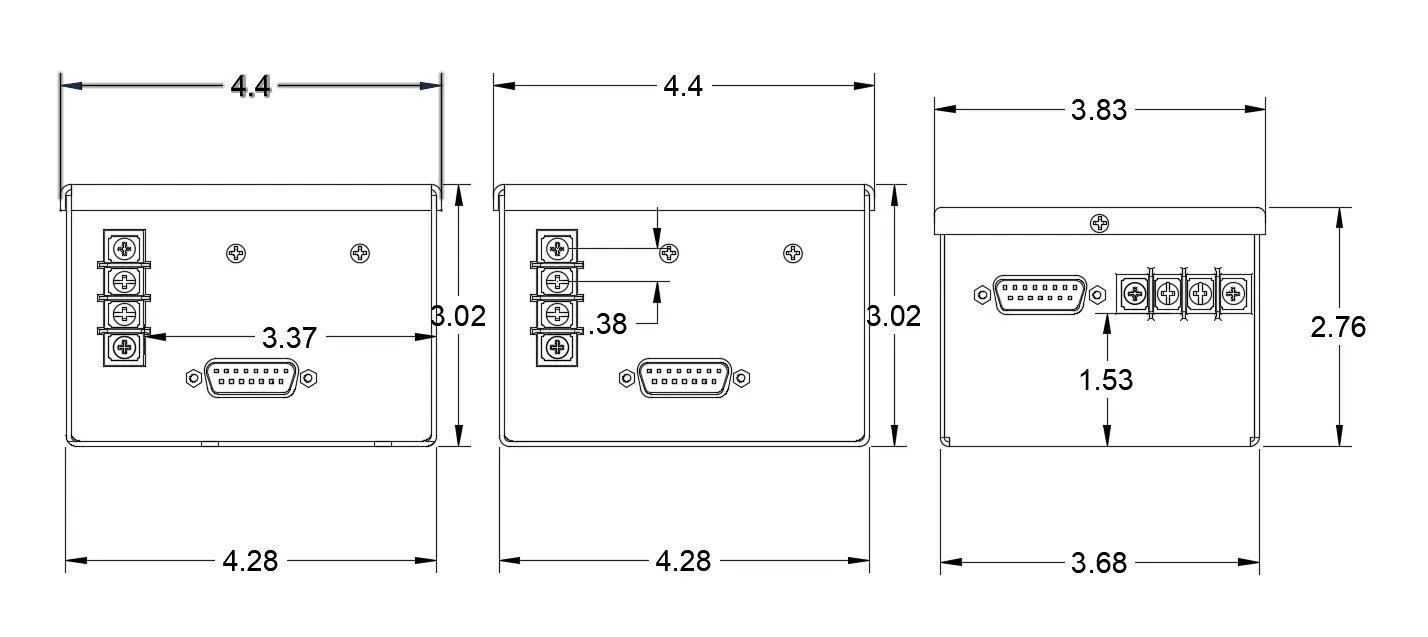

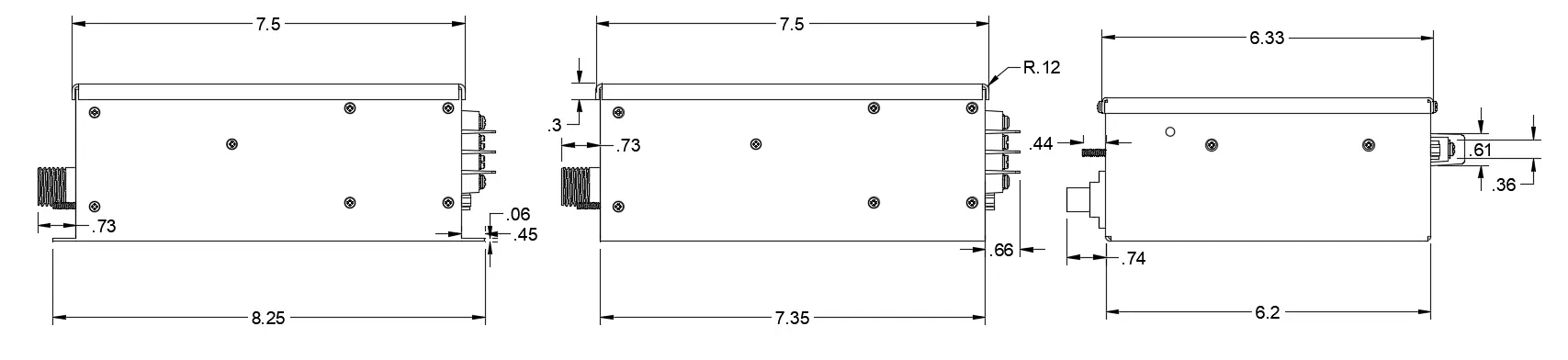

Mechanical drawings
Dimensions are in inches unless otherwise noted. Contact Gamma to confirm the final enclosure and connector arrangement for your configuration.
LXR Series resources
Download the data sheet or contact Gamma for configuration assistance.
