High Voltage Solutions

HVD Series

Precision high voltage dividers

High-input-impedance dividers for DC measurements from 50 to 500 kV. Standard toroidal models provide 0.2% accuracy, corona-free operation at rated voltage, and a direct low-voltage output for high-impedance measurement instrumentation.

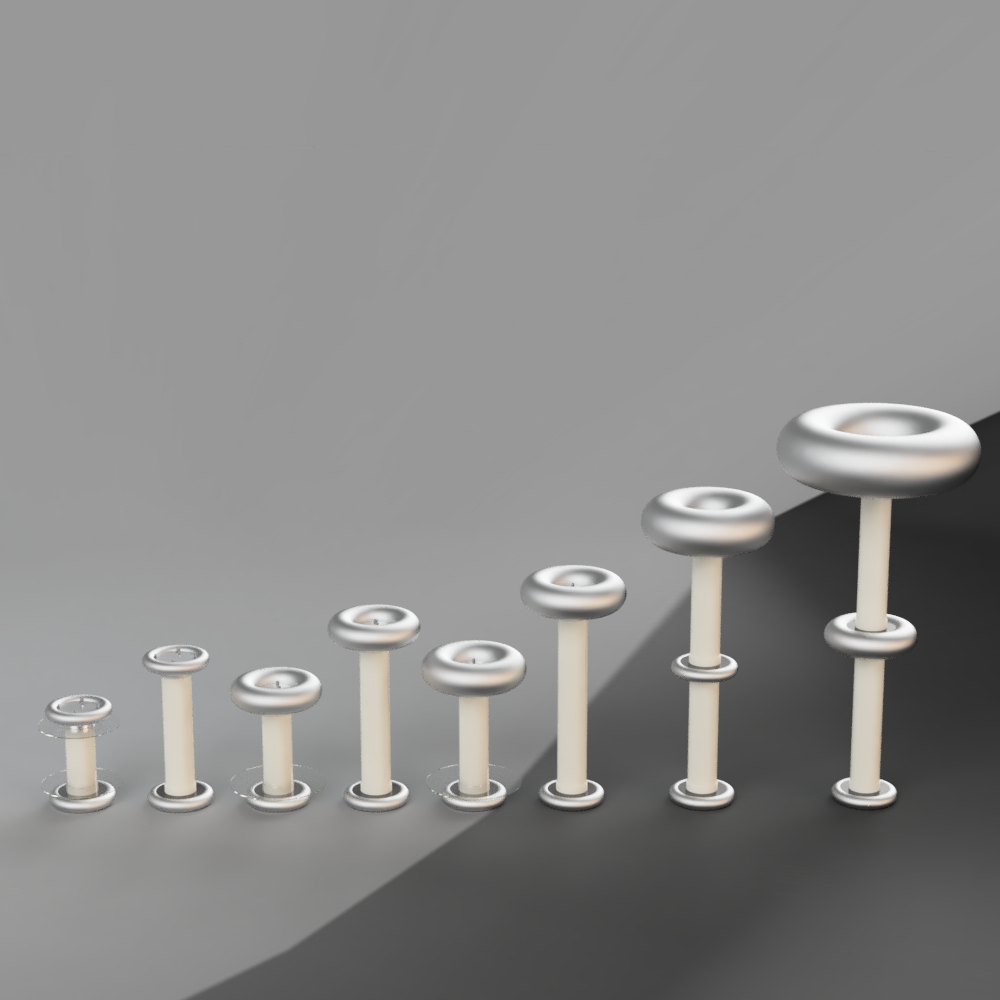

Gamma HVD Series precision high voltage divider family
50-500 kVMeasurement range
0.2%Standard accuracy
75 ppm/°CStandard version
25 ppm/°CS version

Key capabilities

  • High input impedance minimizes loading of the measured circuit
  • Corona-free toroidal input termination on 100-500 kV models
  • 0.2% accuracy on standard toroidal configurations
  • Low-voltage output scaled at 1 V per 100 kV
  • BNC output on standard toroidal models

Typical applications

  • High voltage laboratory measurement
  • Accelerator and beam-system testing
  • Dielectric and insulation research
  • High voltage calibration systems

Model and data sheet guide

Standard modelS modelMaximum inputInput impedanceOutput impedanceOutput tapHeightMaximum widthData sheet
HVD50EHVD50ES50 kV DC1000 MΩ10 kΩConfirm with Gamma3.13 in6.36 x 5.2 inDownload

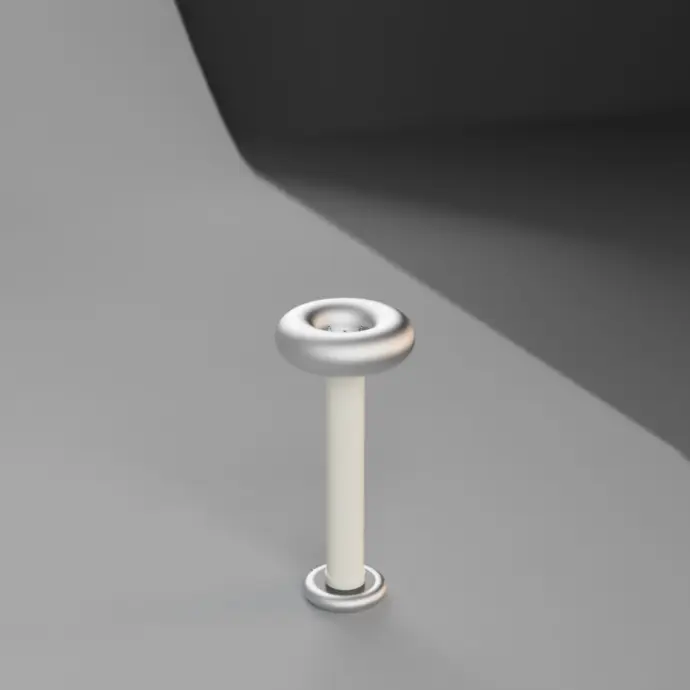

HVD100HVD100S100 kV DC2000 MΩ20 kΩ1 V17.5 in10.12 inDownload

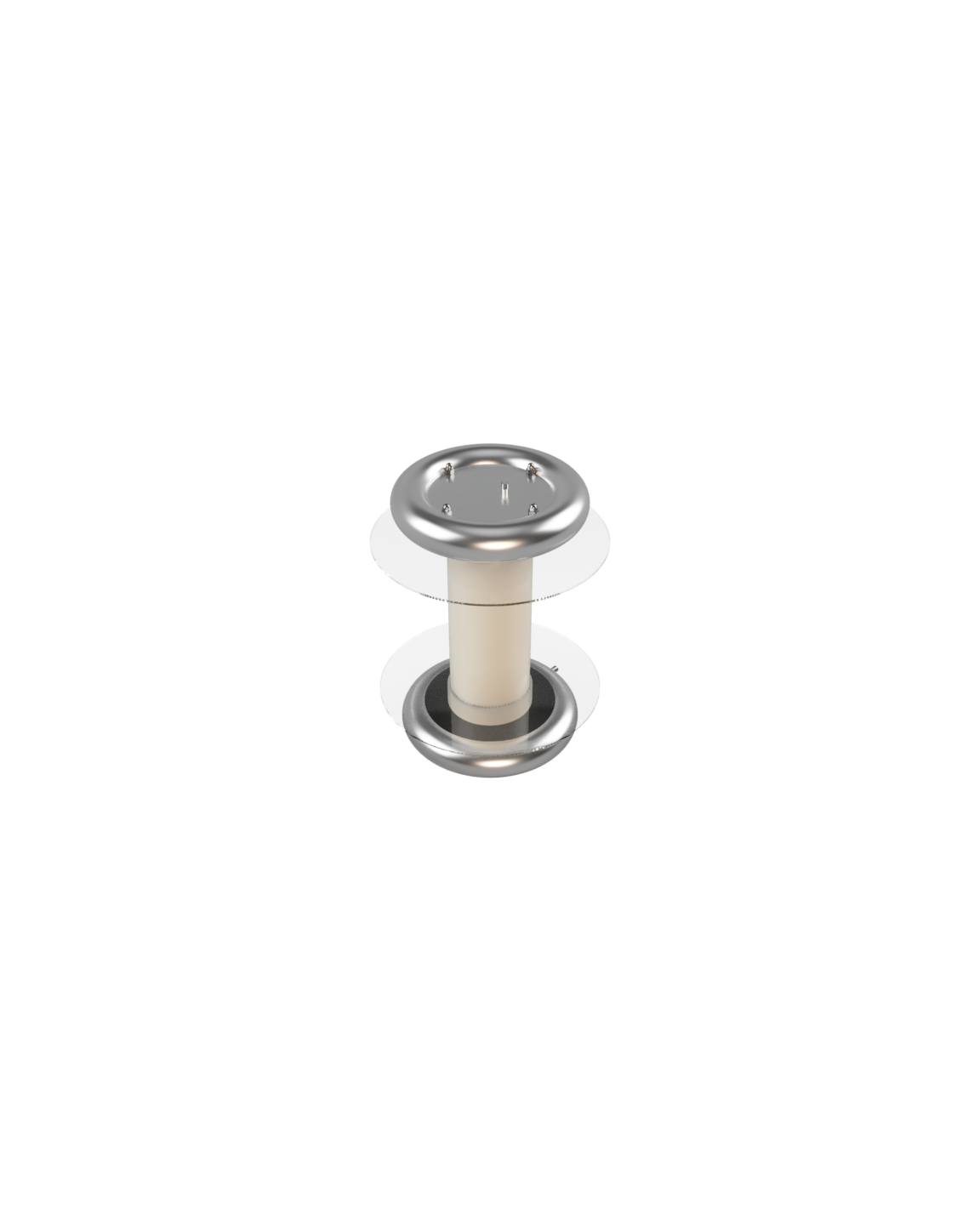

HVD200/16HVD200S/16200 kV DC4000 MΩ40 kΩ2 V16 in12.4 inDownload

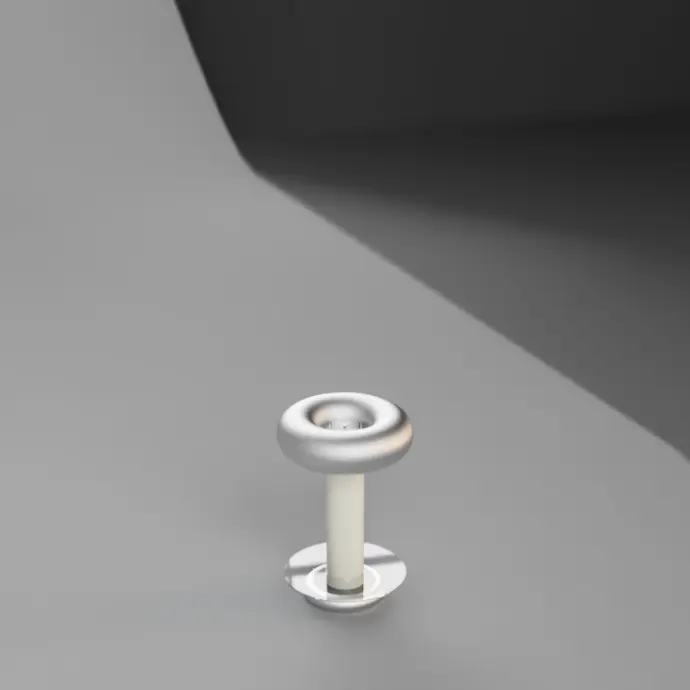

HVD200/24HVD200S/24200 kV DC4000 MΩ40 kΩ2 V24 in10 inDownload

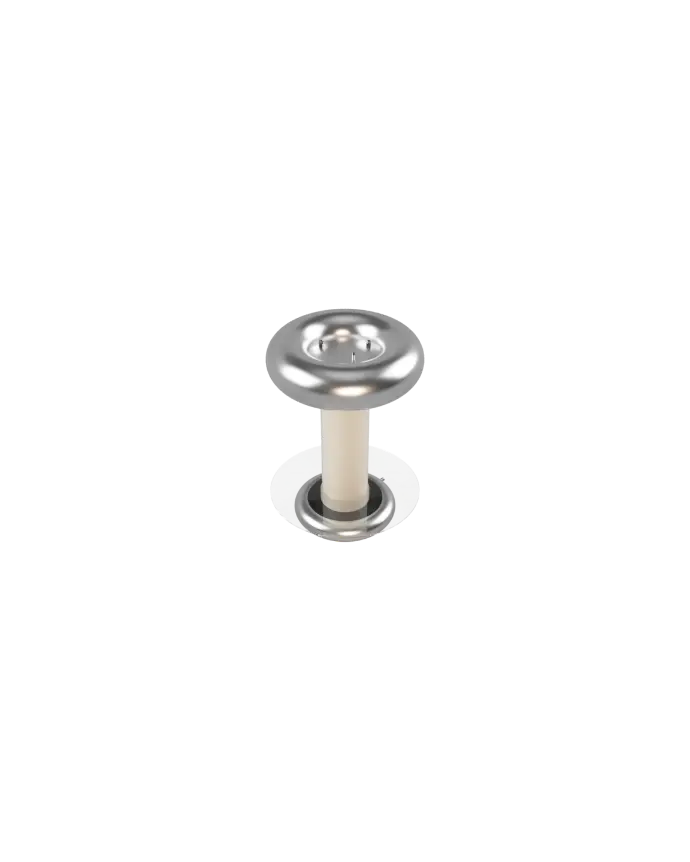

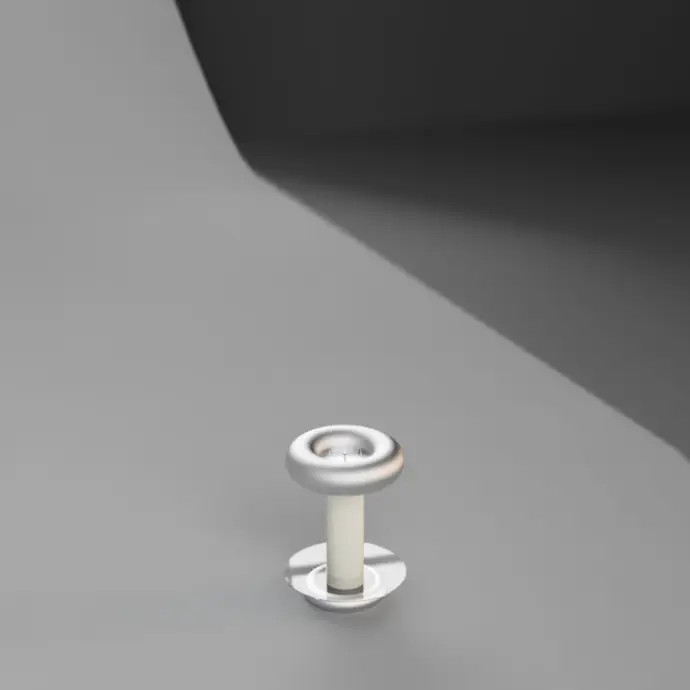

HVD250/20HVD250S/20250 kV DC5000 MΩ50 kΩ2.5 V20 in14.7 inDownload

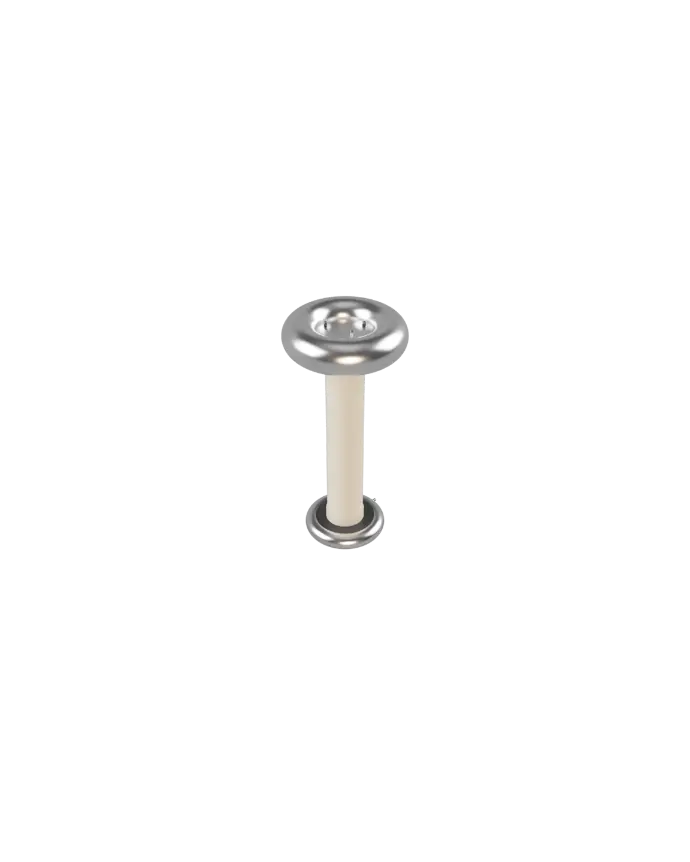

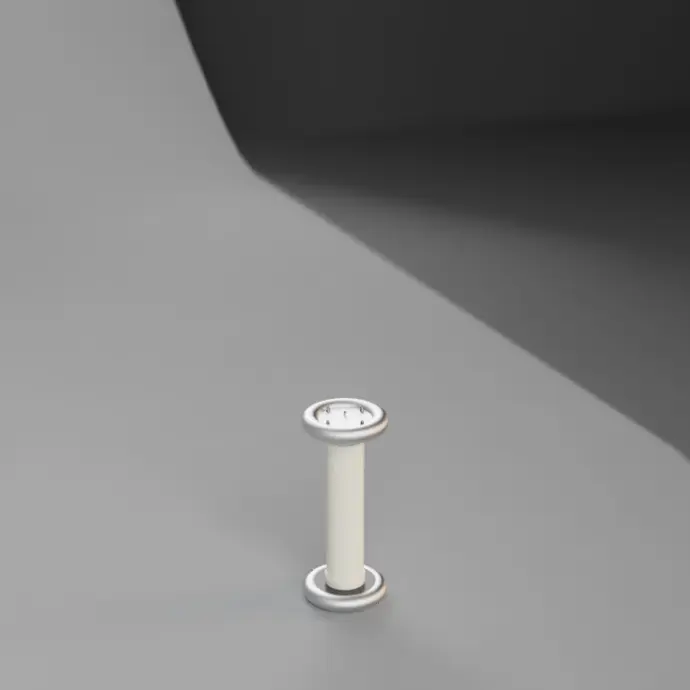

HVD250/30HVD250S/30250 kV DC5000 MΩ50 kΩ2.5 V30 in14 inDownload

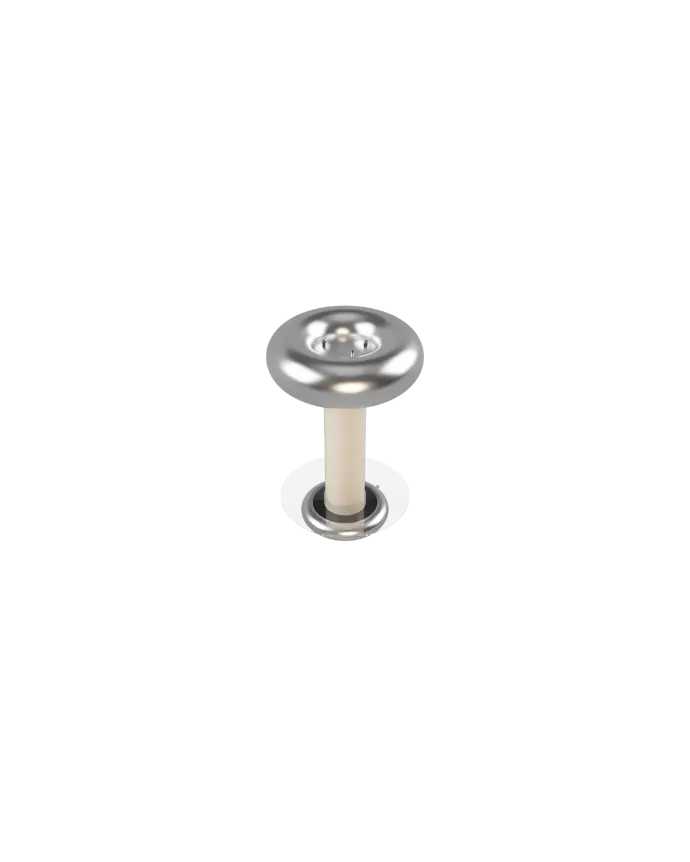

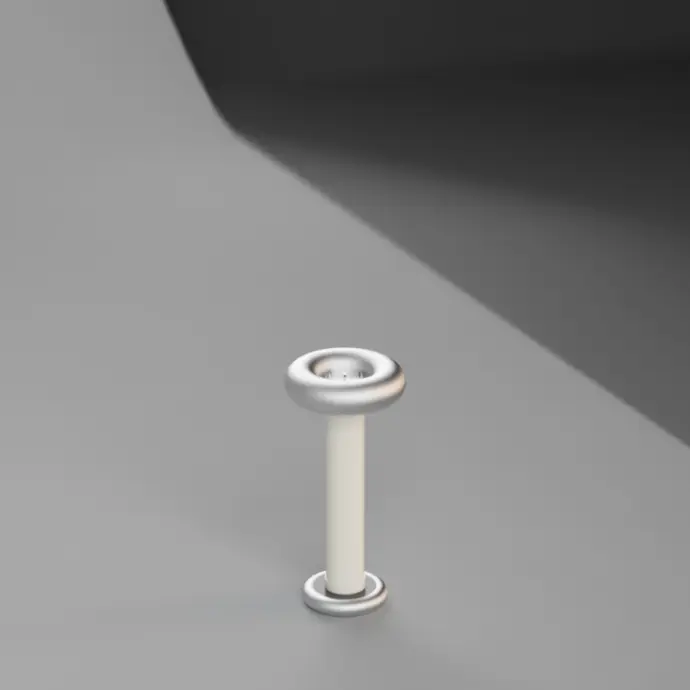

HVD300/24HVD300S/24300 kV DC6000 MΩ60 kΩ3 V24 in16 inDownload

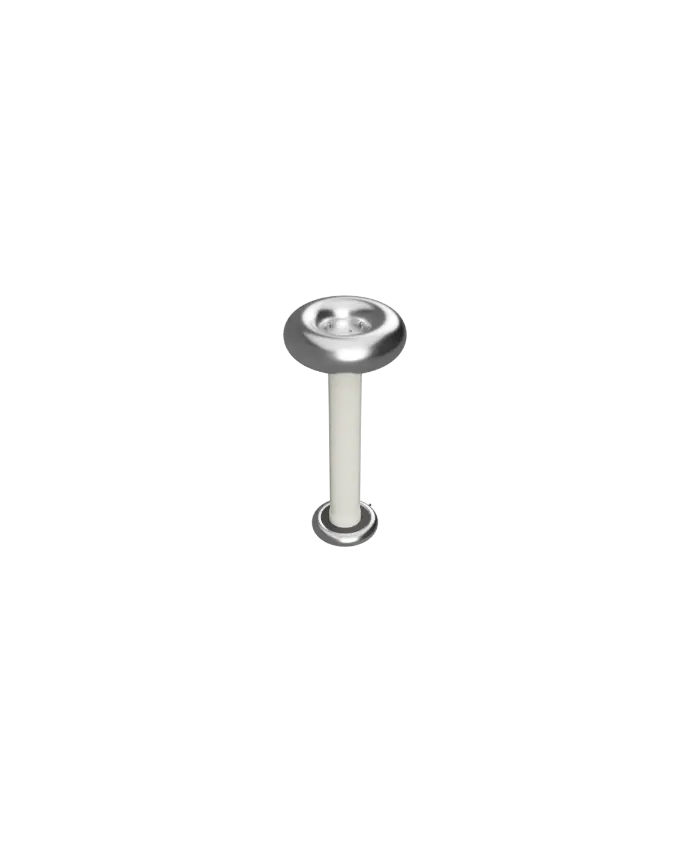

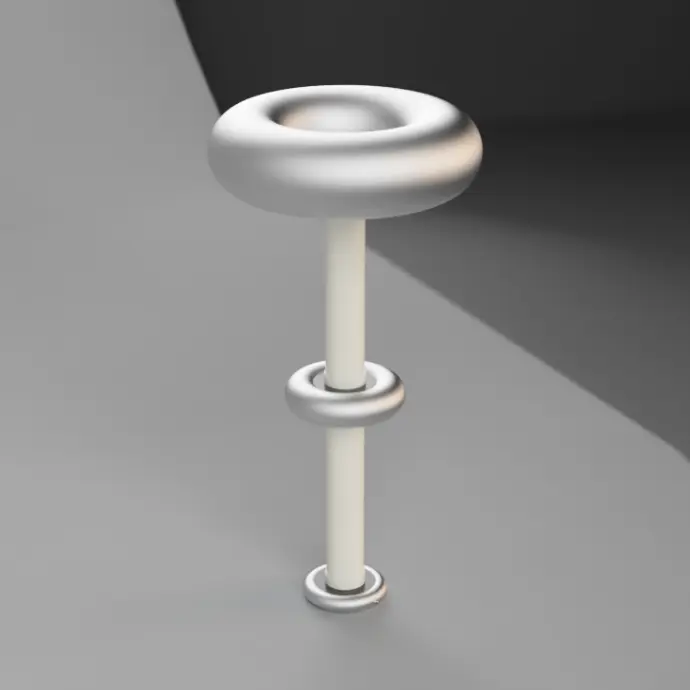

HVD300/36HVD300S/36300 kV DC6000 MΩ60 kΩ3 V36 in16 inDownload

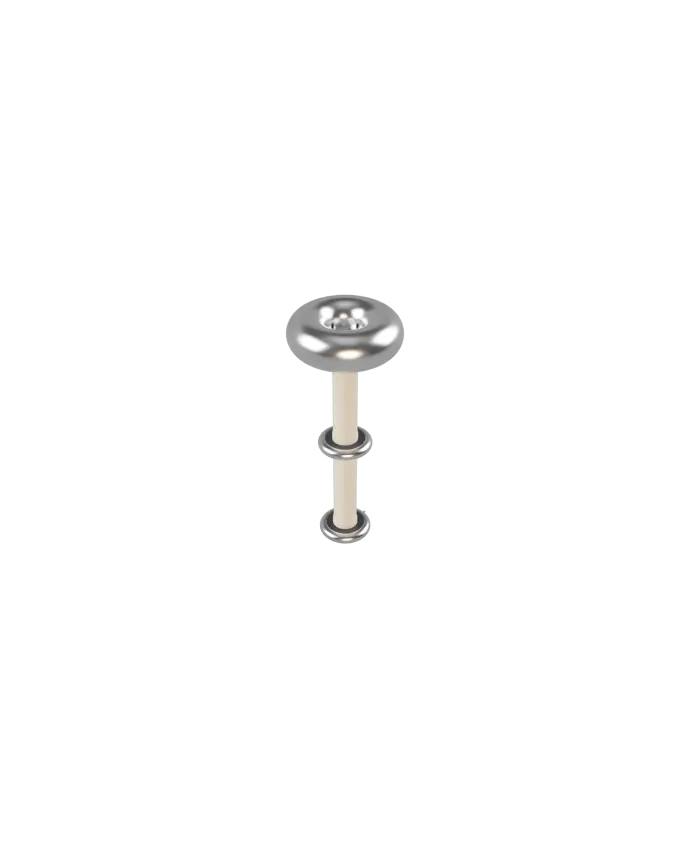

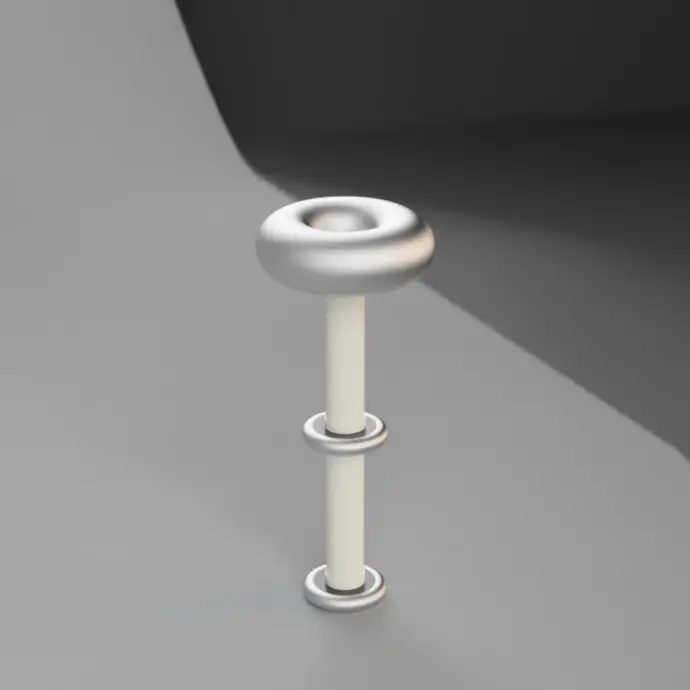

HVD400/48HVD400S/48400 kV DC8000 MΩ80 kΩ4 V48 in20 inDownload

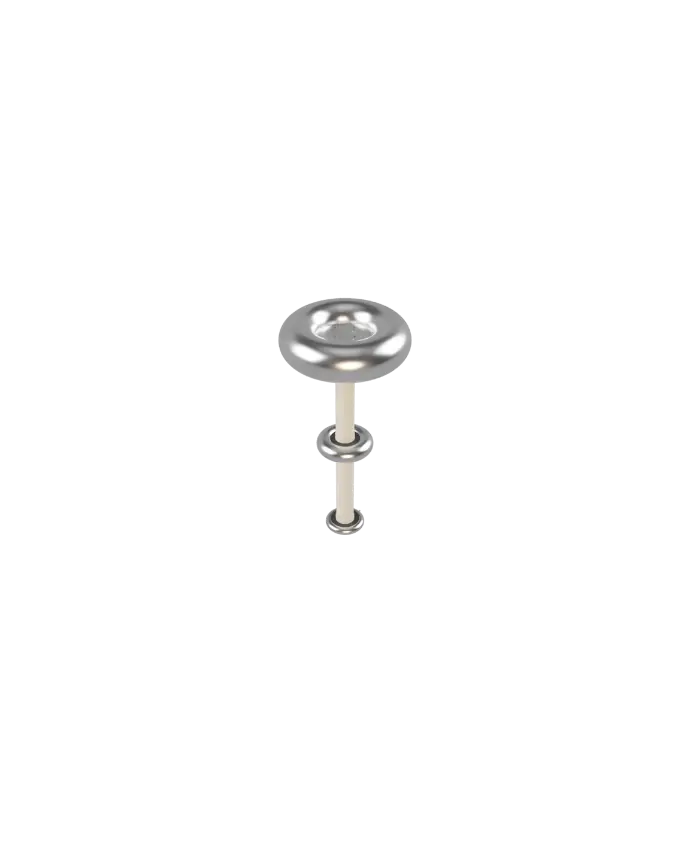

HVD500/60HVD500S/60500 kV DC10000 MΩ100 kΩ5 V60 in30 inDownload

Output taps shown for the 100-500 kV toroidal models are scaled at 1 V per 100 kV. HVD50E output scaling and connection are confirmed for the measurement system. Confirm the final HVD100 configuration with Gamma before ordering.

Ordering guide

Select the mechanical model and temperature coefficient. For 100-500 kV toroidal models, the S suffix appears immediately before the height designation.

Standard version

HVD[Voltage]/[Height]

75 ppm/°C temperature coefficient

Example: HVD200/16

S version

HVD[Voltage]S/[Height]

25 ppm/°C temperature coefficient

Example: HVD200S/16

For the compact 50 kV divider, use HVD50E for the standard version or HVD50ES for the S version.

Family specifications

Electrical characteristics

Accuracy0.2% on 100-500 kV toroidal models
Output scaling1 V per 100 kV on 100-500 kV toroidal models
Temperature coefficient75 ppm/°C standard; 25 ppm/°C S version
InstrumentationUse with a high-impedance digital, differential, or data-acquisition input
PerformanceDependent on ambient laboratory conditions

Mechanical and connection

Input termination5.6-30 in toroid, depending on model
Output connectionBNC connector on standard toroidal models
Optional baseAvailable with caster wheels
Custom configurationsAvailable for application-specific measurement requirements
Final selectionConfirm installation clearances and interfaces with Gamma before ordering

Mechanical drawings

Each drawing corresponds to its named model. Dimensions are in inches.

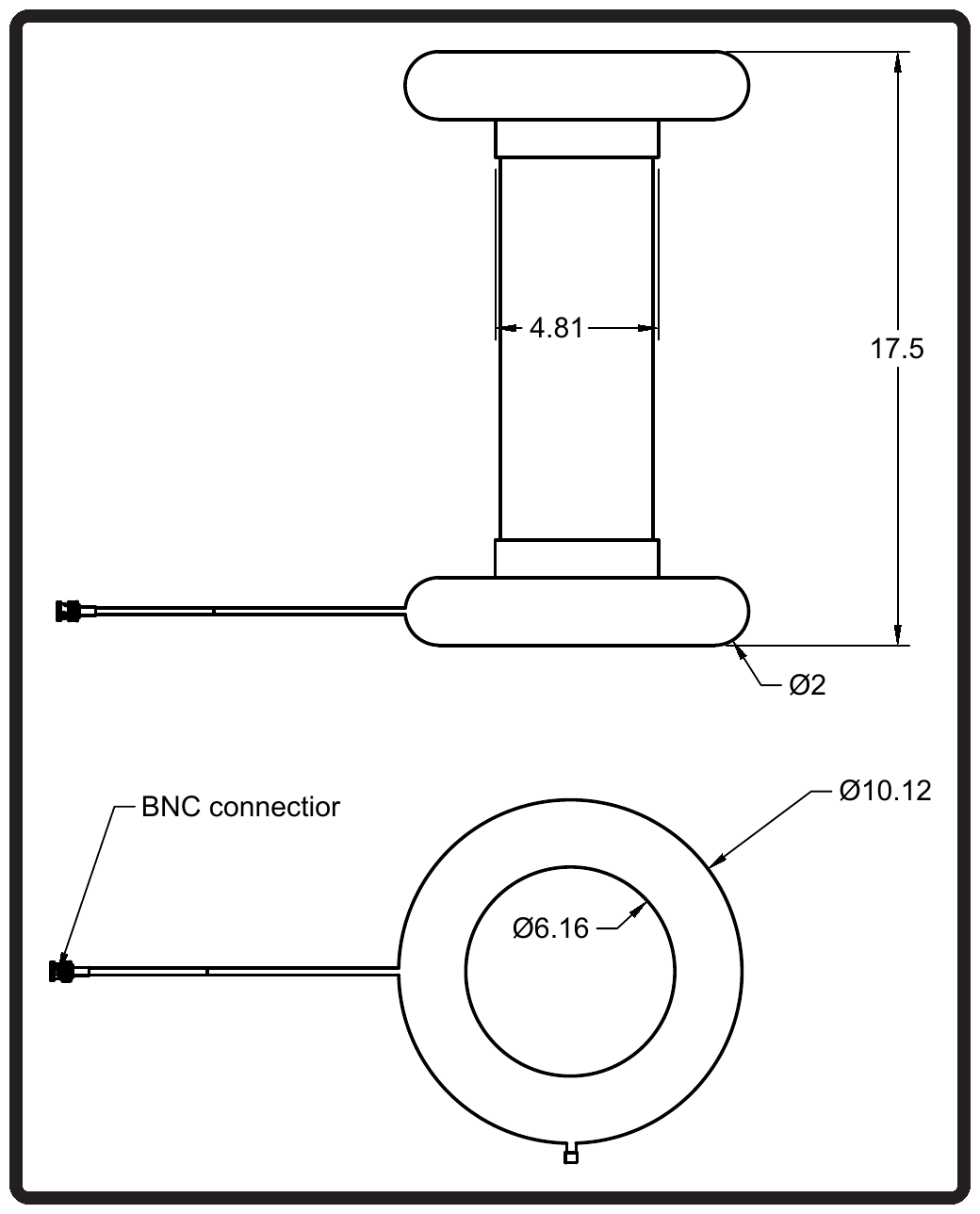

HVD100
HVD100 side and top dimensional views

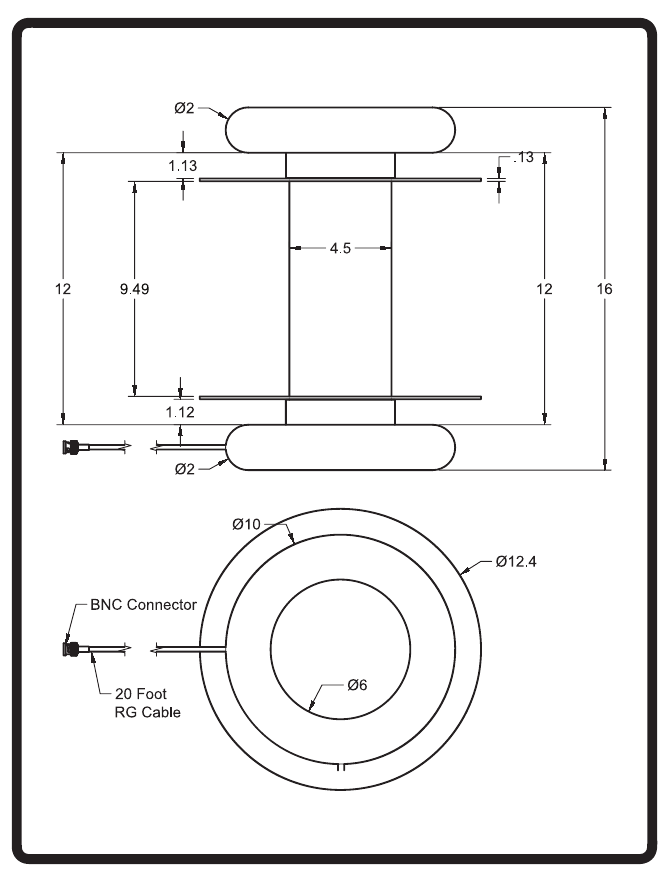

HVD200/16
HVD200/16 mechanical drawing

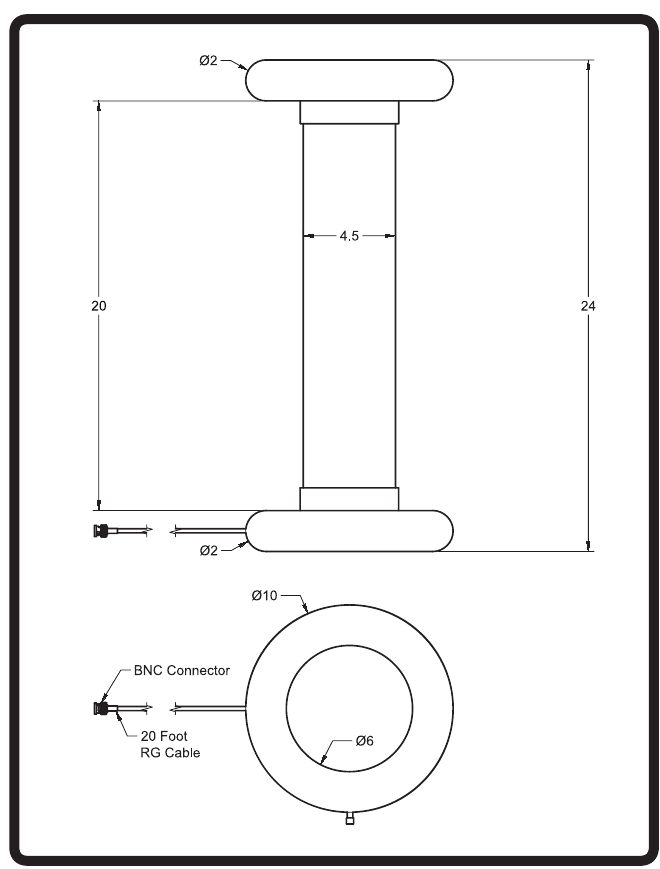

HVD200/24
HVD200/24 mechanical drawing

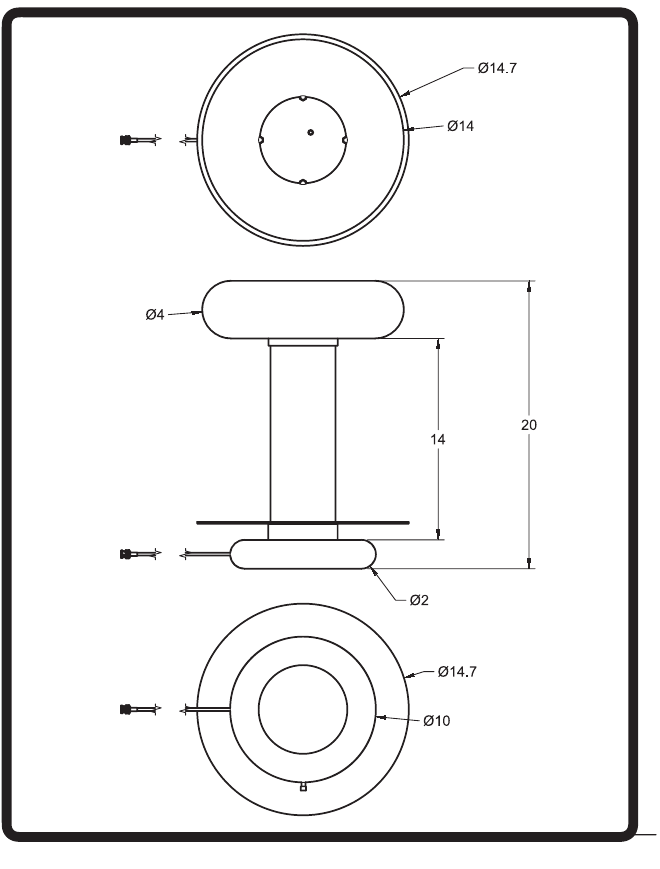

HVD250/20
HVD250/20 mechanical drawing

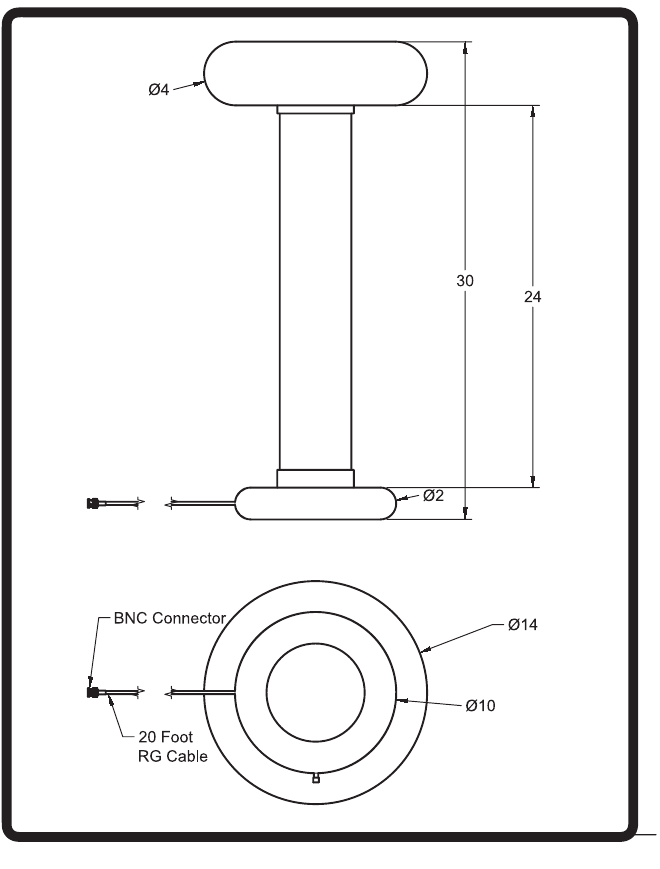

HVD250/30
HVD250/30 mechanical drawing

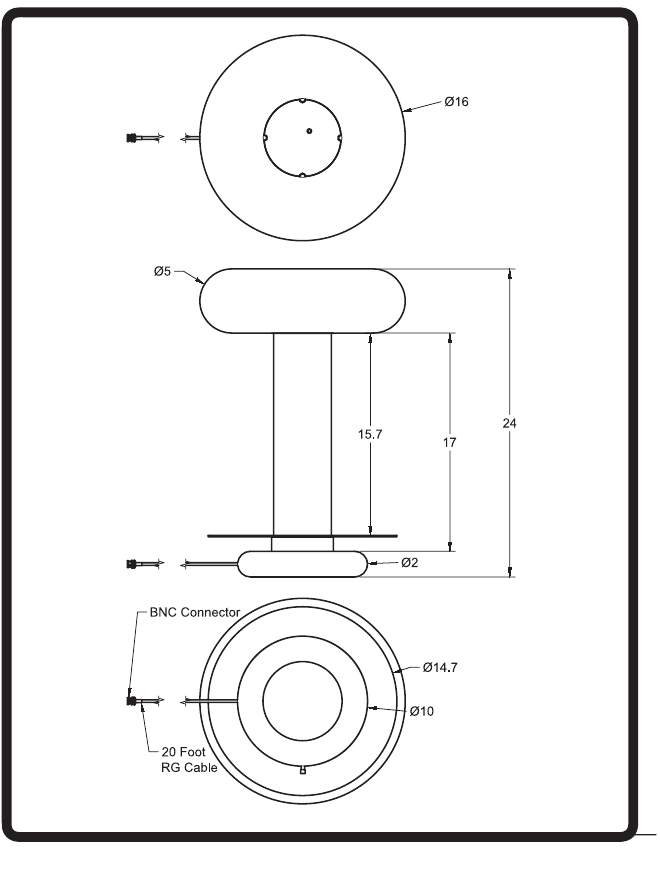

HVD300/24
HVD300/24 mechanical drawing

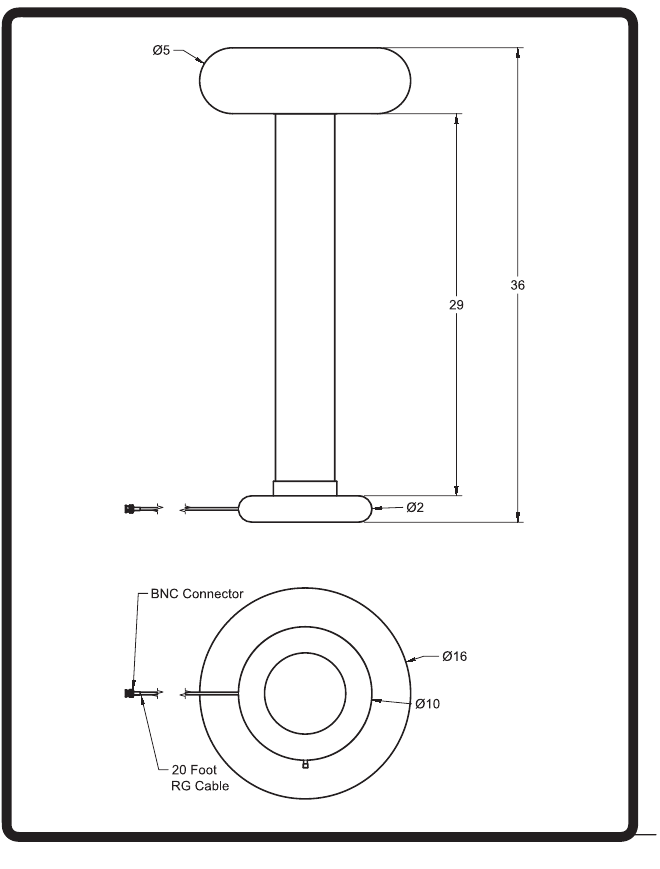

HVD300/36
HVD300/36 mechanical drawing

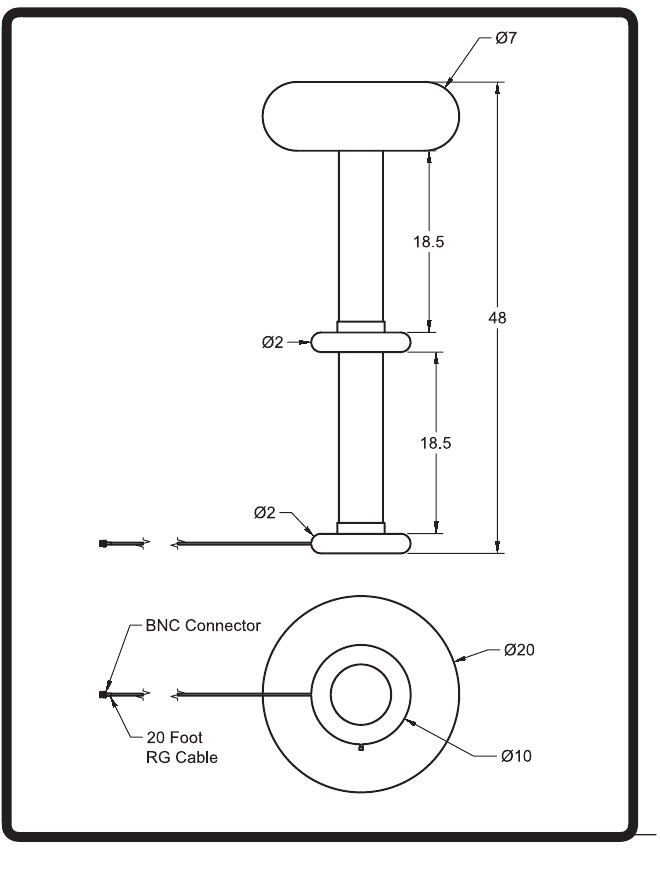

HVD400/48
HVD400/48 mechanical drawing

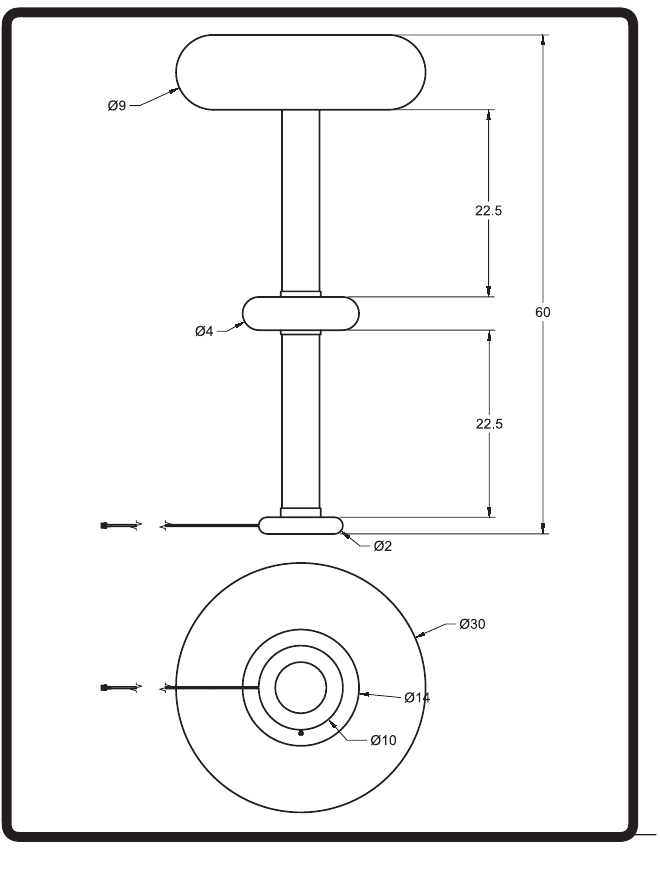

HVD500/60
HVD500/60 mechanical drawing without optional base

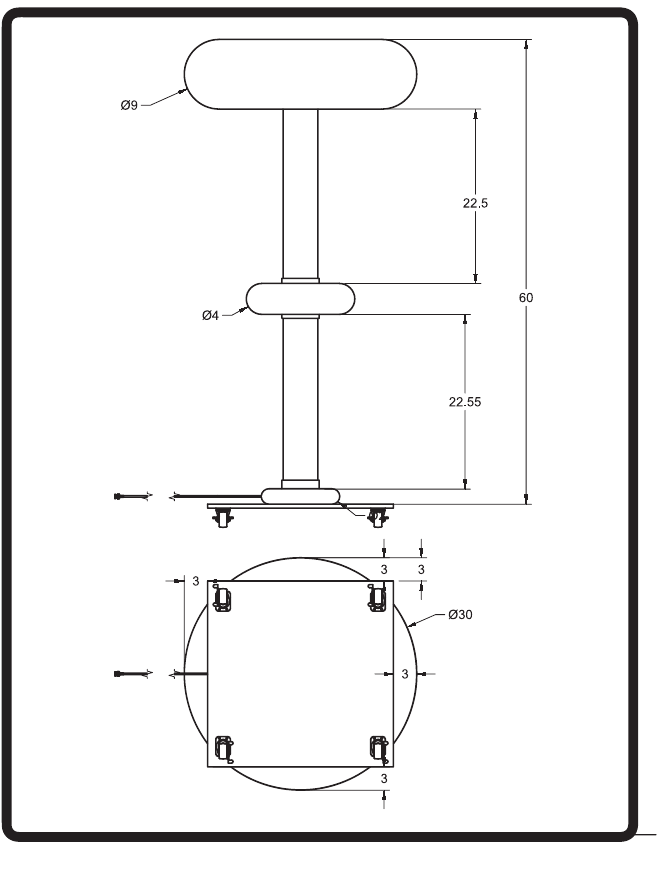

HVD500/60 with base
HVD500/60 mechanical drawing with optional wheeled base

Compact 50 kV divider

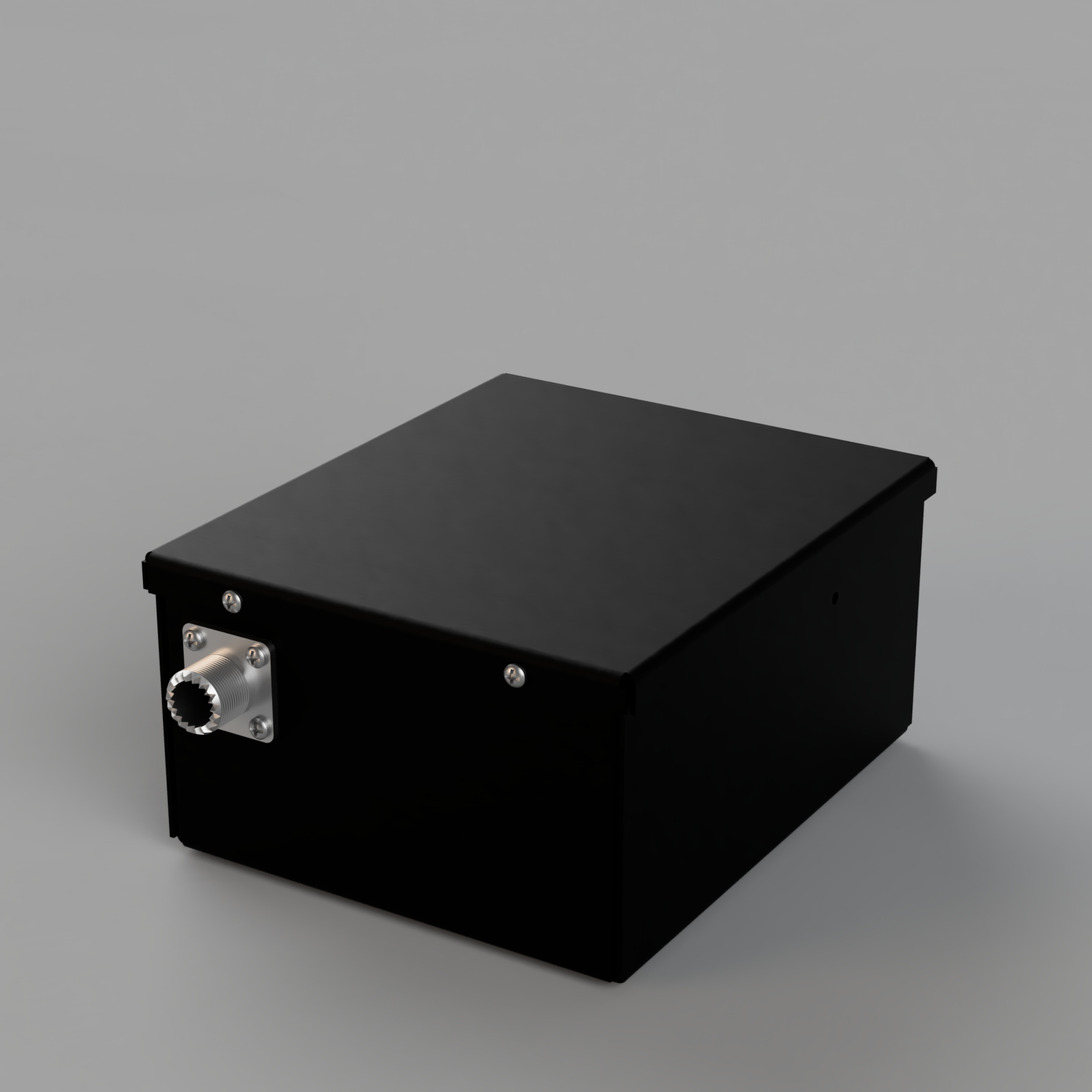

Gamma HVD50E compact enclosed high voltage divider

HVD50E / HVD50ES

Compact enclosed dividers rated for 50 kV DC with 1000 MΩ input impedance and 10 kΩ output impedance. HVD50E is the standard version; HVD50ES provides the 25 ppm/°C temperature coefficient.

The enclosure measures 6.36 x 5.2 x 3.13 in. Output scaling, connector, and cable should be confirmed with Gamma for the required measurement system.

Download HVD50E data sheet

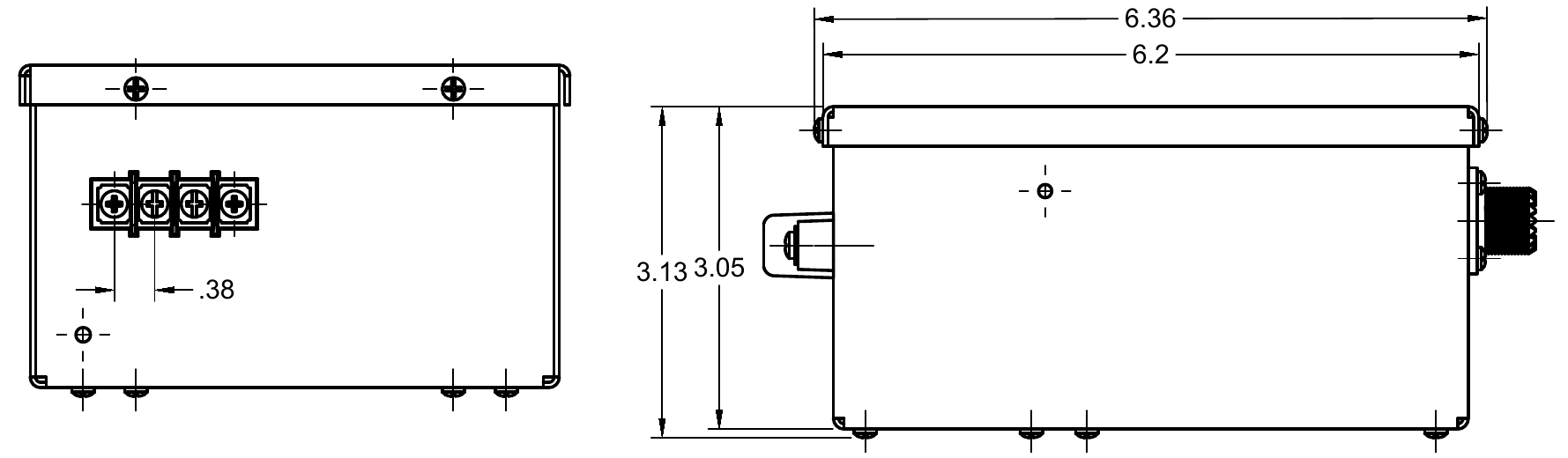

HVD50E front and side views
HVD50E front and side enclosure dimensions

HVD Series resources

Download a data sheet or contact Gamma for configuration assistance.

View data sheetsContact Gamma
