High Voltage Solutions

MC Series

PCB-Mount DC/DC High Voltage Converters

Compact, fully encapsulated converters spanning 50 V to 20 kV. Output voltage is proportional to the applied input, with reversible-polarity models through 5 kV and fixed positive or negative models from 10 to 20 kV.

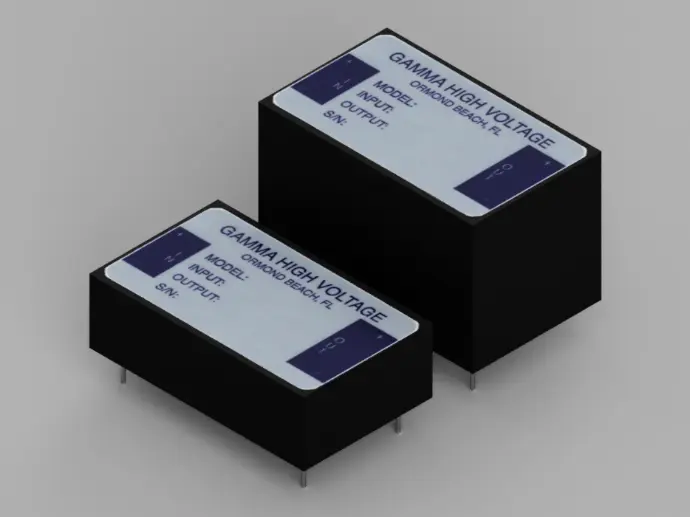

Gamma MC Series PCB-mount high voltage converters
50 V-20 kVOutput range
Up to 3 WRated power
10 modelsStandard range
2.8 / 5.6 in³Package volume

Key capabilities

  • Output proportional to input voltage
  • Floating input and output through 5 kV
  • High input/output isolation
  • Short-circuit and reverse-polarity protection
  • Fully encapsulated PCB-mount construction

Typical applications

  • Medical electronics
  • Photomultiplier tubes
  • Ionization chambers
  • Geiger tubes

Standard model guide

ModelOutput voltage rangePolarityOutput current
MC550-500 VDCReversible6 mA
MC15150 V-1.5 kVReversible2 mA
MC30300 V-3 kVReversible1 mA
MC50500 V-5 kVReversible200 µA
MC100P1-10 kVPositive200 µA
MC100N1-10 kVNegative200 µA
MC150P1.5-15 kVPositive160 µA
MC150N1.5-15 kVNegative160 µA
MC200P2-20 kVPositive150 µA
MC200N2-20 kVNegative150 µA

Models through 5 kV are reversible. Choose P or N for 10, 15, and 20 kV models. Add -RC when the RoHS-compliant version is required.

Specifications

Electrical characteristics

Input voltage1.75-12 VDC through 10 kV; 1.75-15 VDC for 15 kV; 3.5-24 VDC for 20 kV
Input current400 mA through 10 kV; 300 mA for 15 kV; 375 mA for 20 kV
Output voltageProportional to input; approximately linear from 10% to maximum output
Output powerUp to 3 W, depending on model
Load regulation5% from half load to full load
Ripple1% peak-to-peak typical

Physical and environmental

DimensionsThrough 5 kV: 1.5 x 2.5 x 0.75 in; 10-20 kV: 1.5 x 2.5 x 1.5 in
Volume2.8 cubic inch through 5 kV; 5.6 cubic inch for 10-20 kV
Weight4 oz through 5 kV; 7 oz for 10-20 kV
PackagingSolid encapsulation
PCB holesApproximately 0.045 in diameter
Temperature-20 to +60 °C

Integration and configuration

PCB integration

  • Apply the specified DC input for the selected voltage class
  • Output follows the input from approximately 10% to maximum
  • Models through 5 kV provide separate floating input and output connections
  • Use approximately 0.045 in PCB holes
  • Maintain suitable high voltage clearance around output connections

Available configurations

  • Reversible output connection through 5 kV
  • Fixed positive or negative polarity from 10 to 20 kV
  • Custom electrical configurations
  • RoHS-compliant version with -RC suffix

How to order

FormatMC[Voltage Code][Polarity][-RC]
ExampleMC100P-RC10 kV | Positive | 200 µA | RoHS compliant

PCB mounting and package dimensions

Dimensions are in inches with millimeters in brackets. The drawings show the standard low- and high-voltage packages.

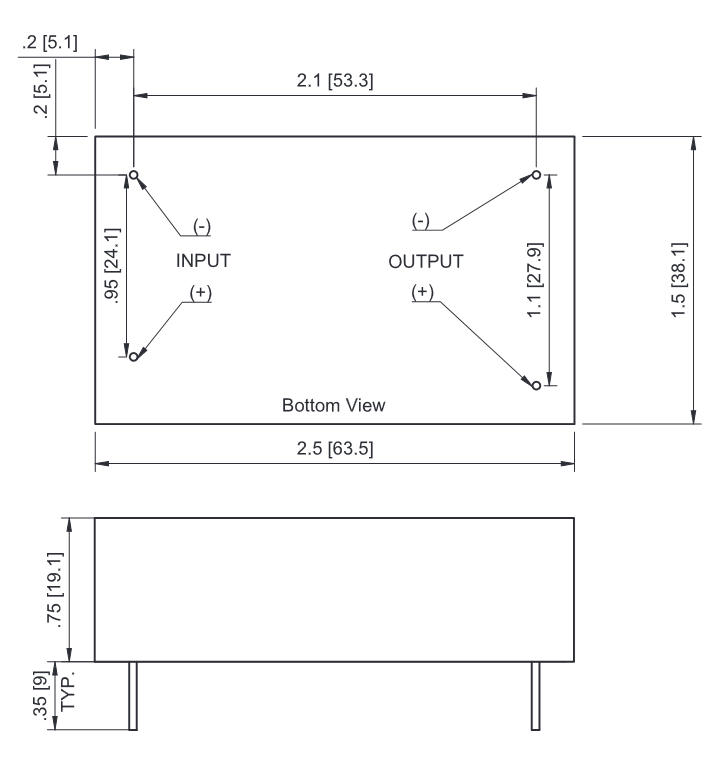

Models through 5 kV
MC Series mechanical drawing for models through 5 kV

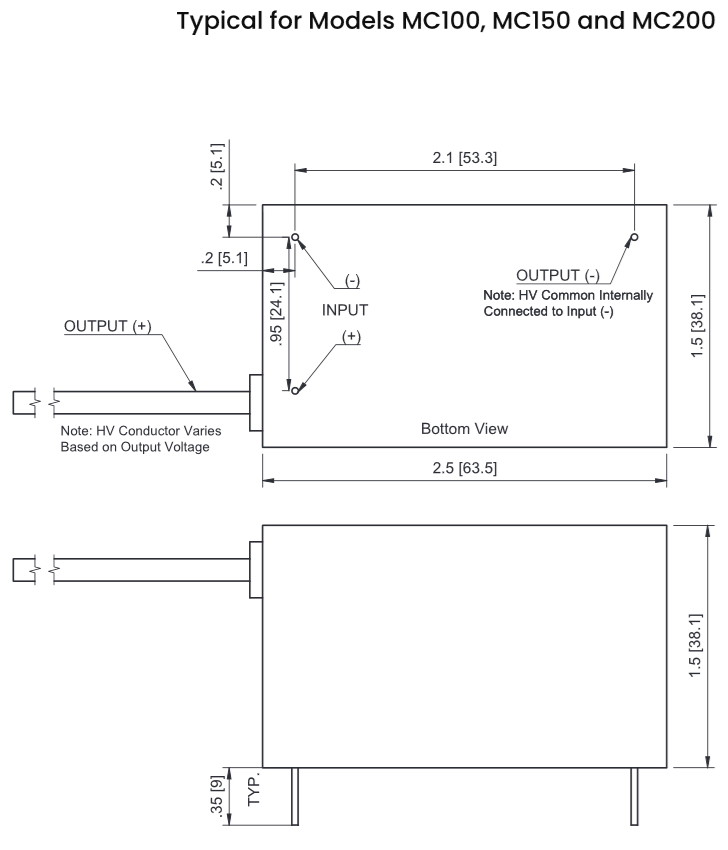

Models MC100, MC150, and MC200
MC Series mechanical drawing for models MC100, MC150, and MC200

MC Series resources

Download the data sheet or contact Gamma for configuration assistance.

Download data sheetContact Gamma
